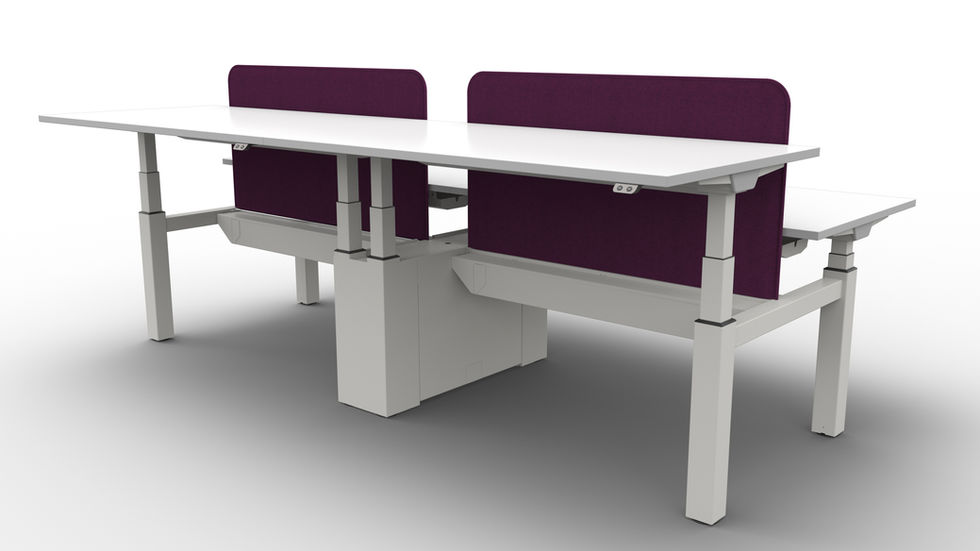

The eBench KD sit-stand bench system is a ‘kit of parts’ which can be configured to offer fixed height or sit/stand functionality and
accommodate a wide range of desk top sizes.
The eBench KD system offers a FIXED height option (740mm incl. a 25mm desktop) and ELECTRIC height adjustable option (650-
1300mm incl. a 25mm desktop); and the system will accommodate desktops ranging in width from 1000mm up to 1800mm and
650mm – 800mm in depth; giving an overall bench depth of 1300 – 1600mm.
The eBench KD goal post end leg design allows for the fitting of either a colour coordinated or contrasting steel or MFC infill panel if desired. Both infill options require an inner steel panel to be fitted to the inside of the leg creating a void between the inner and outer panels which doubles as a mass cable riser. The mass cable shroud is a neat and tidy way to convey unsightly power and data cables from the floor into the lower horizontal cable tray.
When standing end frames immediately adjacent to each other, the end legs can be linked (use SS-KD-LINK) & then shrouded using the linked end leg mass cable shroud (SS-KD-EL-SHRD). This option not only gives a clean look to the linked eBench KD frames, but also provides a large volume void within which cables can be hidden.
